ARC(CK2)-Fluo Protein Kinase CK2 assay kit



ARC(CK2)-Fluo Protein Kinase CK2 assay kit

For screening/characterization of inhibitors of the protein kinase CK2 저해물질 탐색에 유용한 kit



클릭하시면 닫힙니다.이미지 저장을 원하시면 마우스 오른쪽클릭후 '다른이름으로 저장'을 하세요

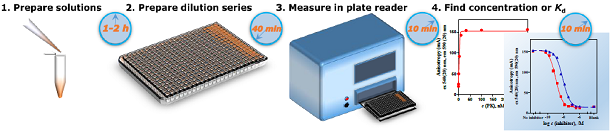

Fig. 1. Workflow



The ARC(CK2)-Fluo590 Protein Kinase Assay Kit is for a homogenous, high-throughput binding/

displacement assay designed for determination of the concentration of active form of the protein kinase and

screening/characterization of inhibitors of protein kinase CK2 (Specifications).

The principle of the assay relies on the competitive displacement of the fluorescent probe [CK2-FLUO590]

from its complex with the protein kinase by the inhibitor (Fig. 2) . CK2-FLUO590 probe possesses high affinity

towards CK2α (KD = 0.4 nM), it is binding with high affinity to both the free CK2α catalytic subunit and CK2

holoenzyme and enables the characterization of both ATP- and substrate competitive inhibitors due to its

unique bisubstrate character (simultaneous association with both binding sites of the protein kinase).






Determination of Kd values for both ATP- and substrate-competitive protein kinase



CK2 inhibitors



CK2 (both the free CK2α catalytic subunit and CK2 holoenzyme)

Detection principle;


Fluorescence anisotropy or polarization



Ex: 540 nm/ Em: 590 nm

Assay setup;


Homogeneous, 1-step, mix & read; 384-well low-volume format

Assay volume;


10 - 25 μl



CK2-FLUO590 probe



클릭하시면 닫힙니다.이미지 저장을 원하시면 마우스 오른쪽클릭후 '다른이름으로 저장'을 하세요

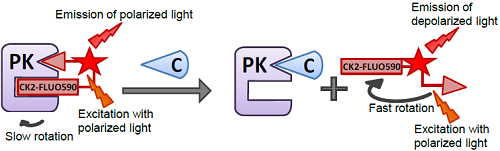

Fig. 2. Principle of ARC(CK2)-Fluo Protein Kinase Assay Kit


The fluorescent probe CK2-FLUO590 probe has low molecular weight (MW < 2000) and possesses low value

of fluorescence anisotropy (polarization) in solution. When CK2-FLUO590 probe binds to the protein kinase

CK2, a high molecular weight complex is formed (MW > 40000) which leads to increase of anisotropy of the

solution. An inhibitory compound competes with CK2-FLUO590 for binding to the kinase and displaces the

probe from the complex resulting in decrease of fluorescence anisotropy.



클릭하시면 닫힙니다.이미지 저장을 원하시면 마우스 오른쪽클릭후 '다른이름으로 저장'을 하세요

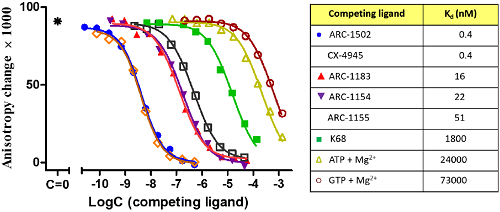

Fig. 3. Displacement of the probe CK2-FLUO590 from the complex with CK2α1-335 by

inhibitors or nucleotides ATP and GTP.



Brochure (PDF)



Ordering information


Catalog No.

Product Name



ARC(CK2)-Fluo, Protein Kinase CK2 Assay Kit
